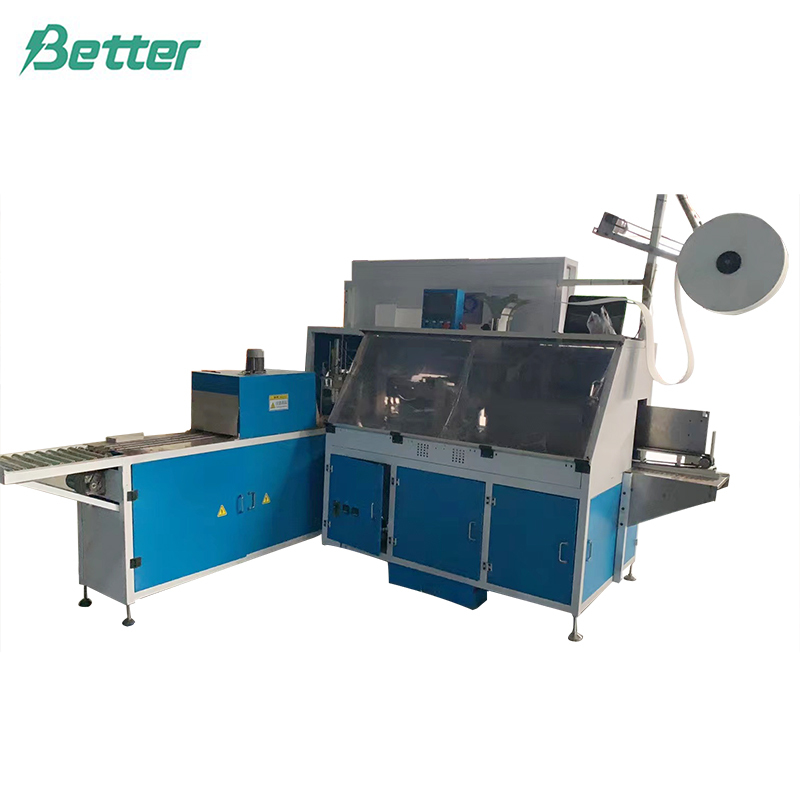

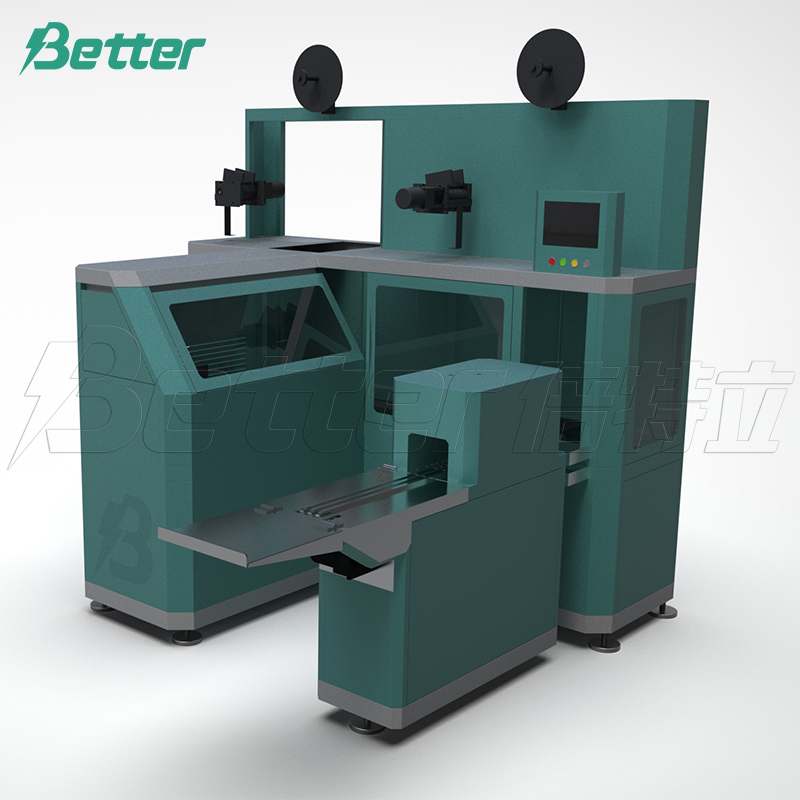

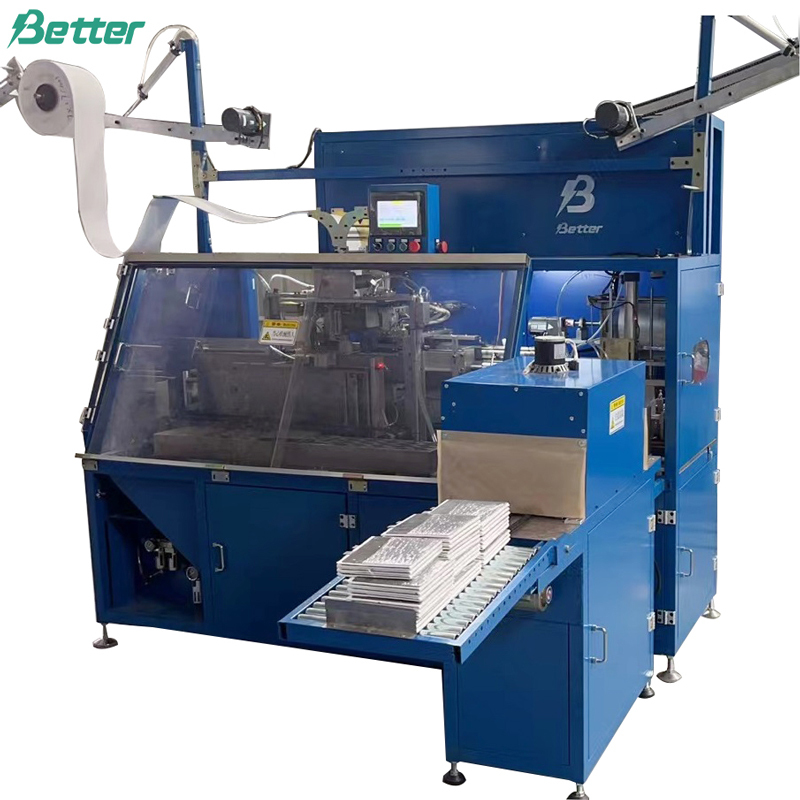

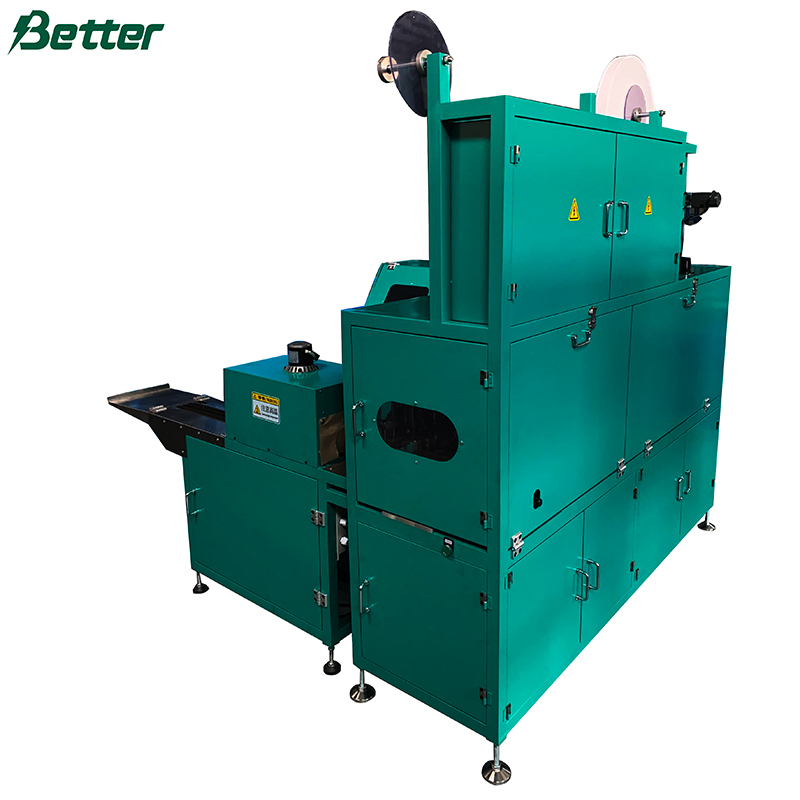

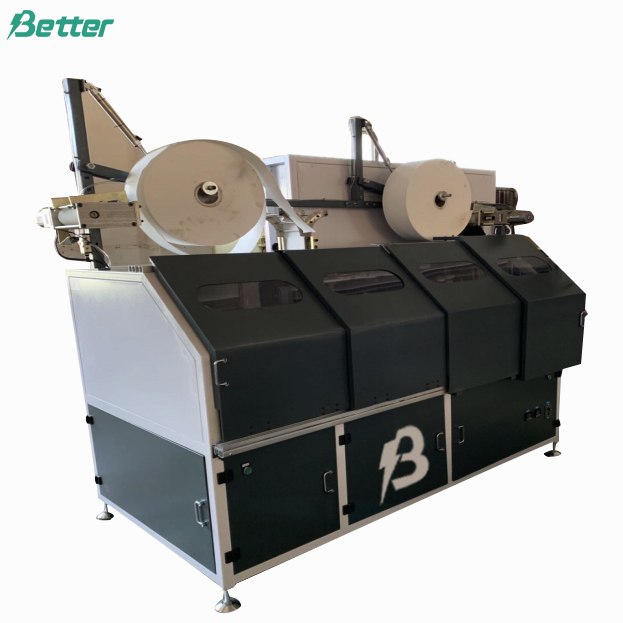

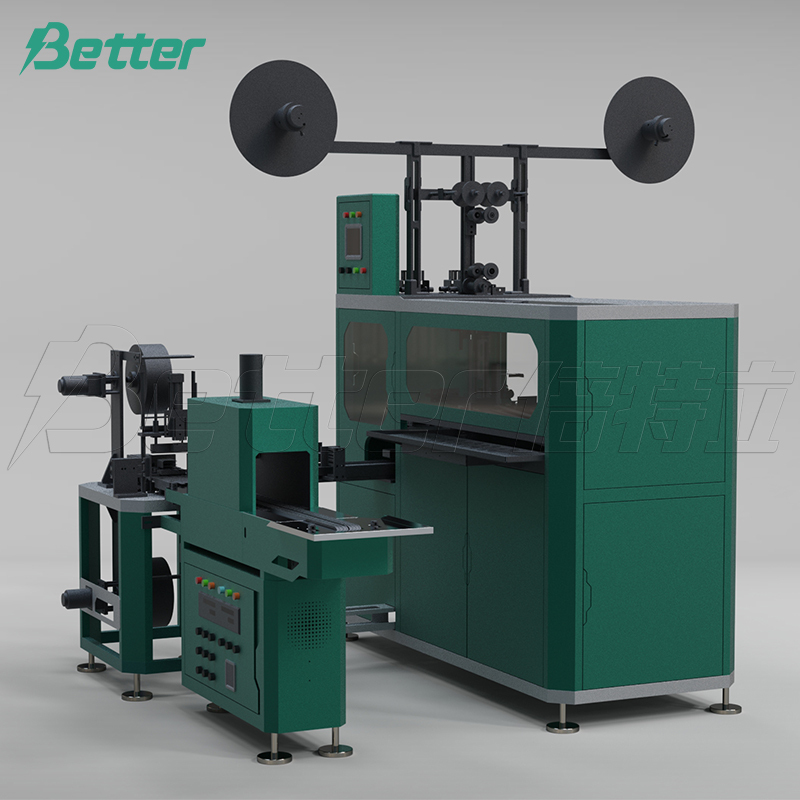

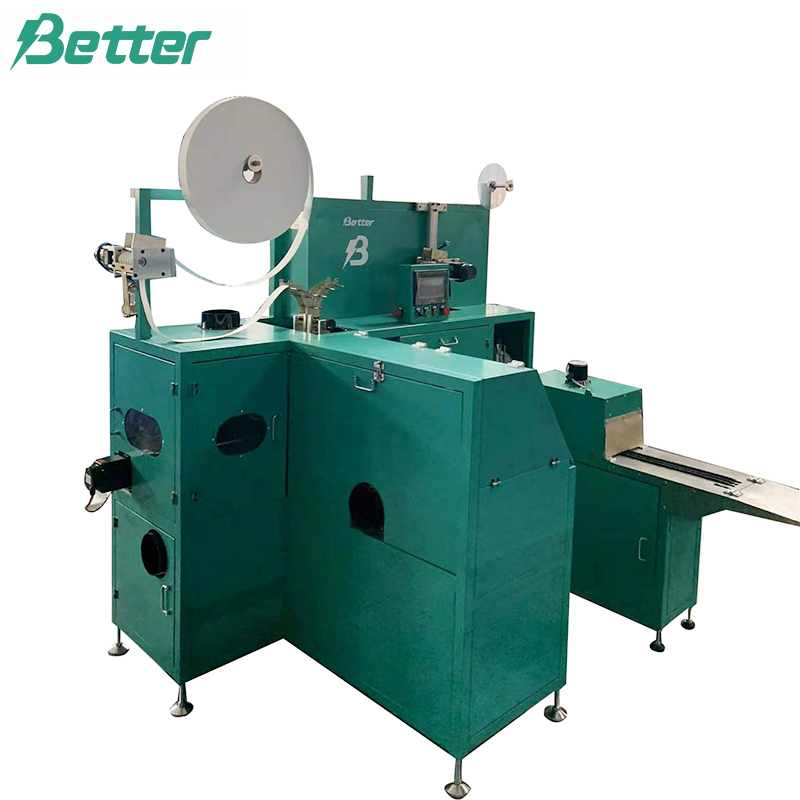

AGM Enveloping & Stacking Machine

AGM Enveloping & Stacking Machine

  • Better
  • CHINA
  • Information

1.Scope of application and production capacity and conditions on site

This system is used to envelop the plate and plate stacking for medium-size lead-acid battery, which working efficiency is less than 1.5s/piece;

1.1 Overall dimensions: 2200*1400*2000mm (length×width×height);

1.2. Power : 3 KW;

1.3. Air supply source: 0.4 ~ 0.6Mpa. Air consumption per unit time: ≥0.12m³/min;

1.4. Power requirement: AC220V/50Hz;

1.5. Weight: 750 KG;

1.6. Enveloping method: envelop positive plate or negative plate, single or double-layer separators

1.7. Efficiency: 6 positive and 7 negative as an example,production capacity is more than 450 batteries per shift for single separator (actual production capacity)

1.8 The scrap rate of the plate: less than 0.5% (requires that the length, width, and thickness tolerance of the plate dimension is less than 1mm, no cracks, no leaks), bad plates or lead paste falling off;

1.9 Adjust and replace the model: adjust the width of the corresponding plate and the width of separator through the screw, and quickly replace the model about 20 minutes;

1.10. The thickness of the single layer of the separator is less than 3.0mm;

the range of the separator: width 95-180mm;

the maximum outer diameter of the roll:800mm;

1.11. Plate range (including lugs): width 90-165mm, height 105-200mm, thickness 1-3mm;

1.12. Number of operators: 1 person (plate feeding and plate collection)



2. Equipment composition

2.1, equipment main unit:1 set

2.2, heat shrinkage film unit:1 set



3. Function configuration and accessories details

3.1. Aluminum, stainless steel or chrome-plated surface treatment is used for key parts in contact with plate and separator;

3.2. Front and back thread adjustment function

3.3 Automatic shaping function;

3.4. It has the function of heat shrinkage POF film wrapping

3.5. Function selection

1) It can choose to envelop the positive plate or negative plate, singer layer separator or double layers separator.

2) It can choose to envelop the positive plate and negative plate.



No.

Name

Quantity

Brand

1

Reducer motor

6

AQL

2

Linear Bearing

53

NSK

3

Cylinder

9

XINGCHEN

4

Closed loop

 stepper motor

1

LEADSHINE

5

Open loop

Stepper motor

1

FUDEK

6

Synchronous belt

1

MITSUBOSHI

7

Photoelectric switch

4

PANASONIC

8

Proximity switch

9

FOTEK

9

Relay

9

IDEC

10

Slider

4

HIWIN



5. Drawing
