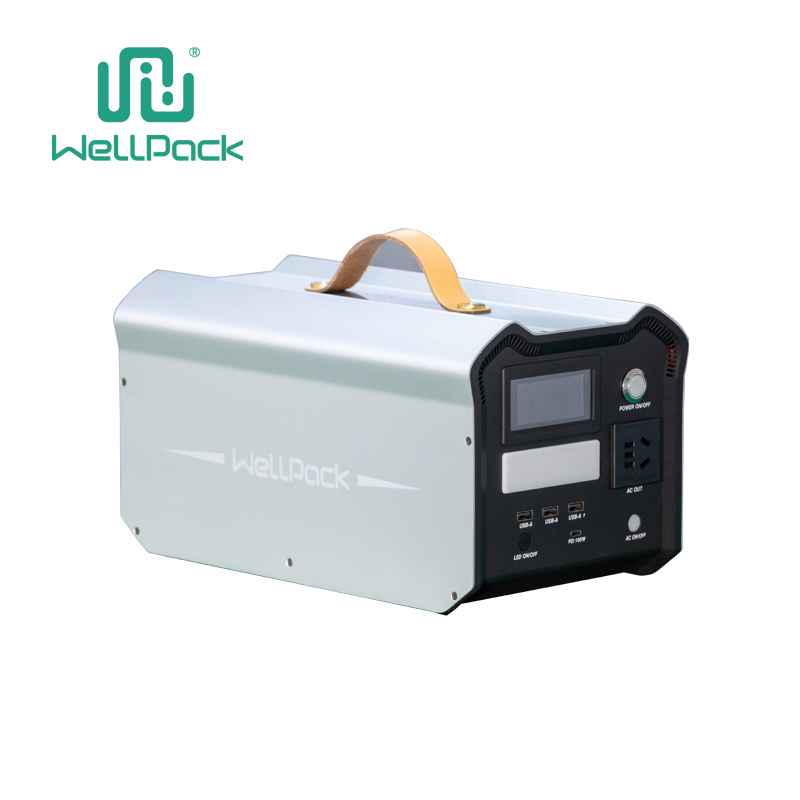

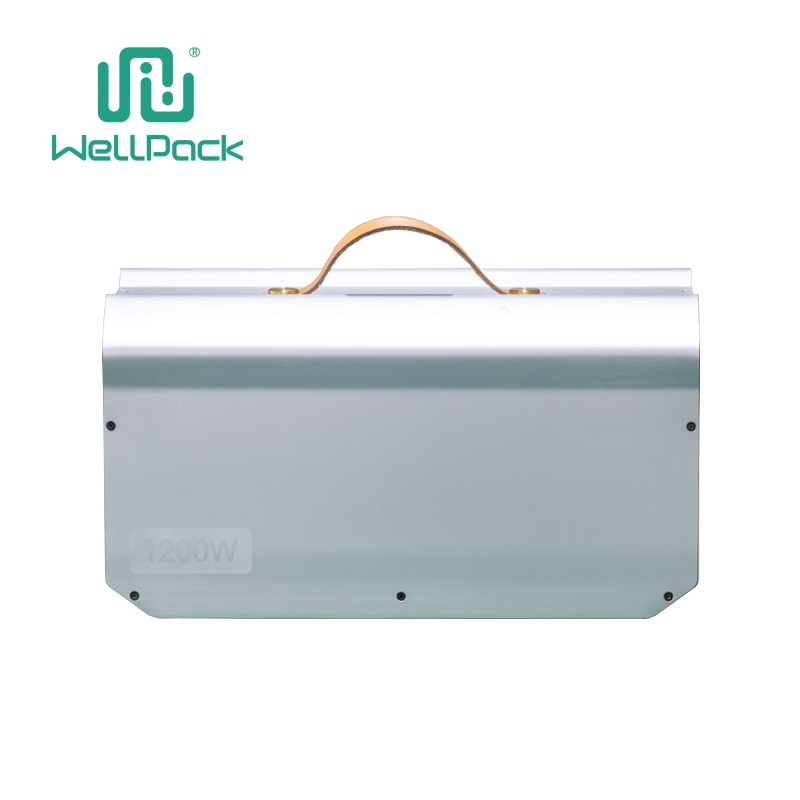

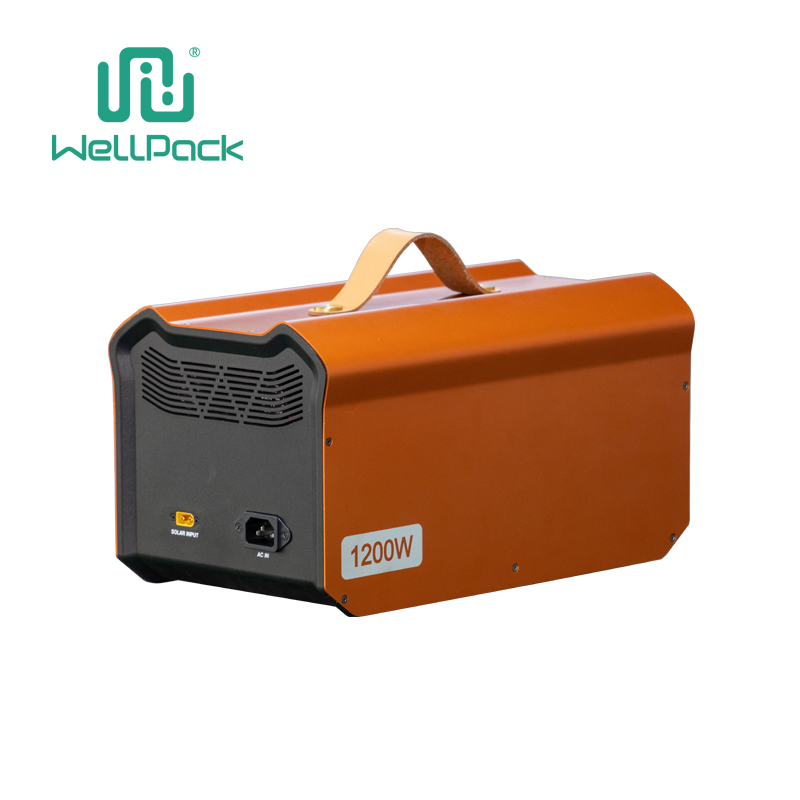

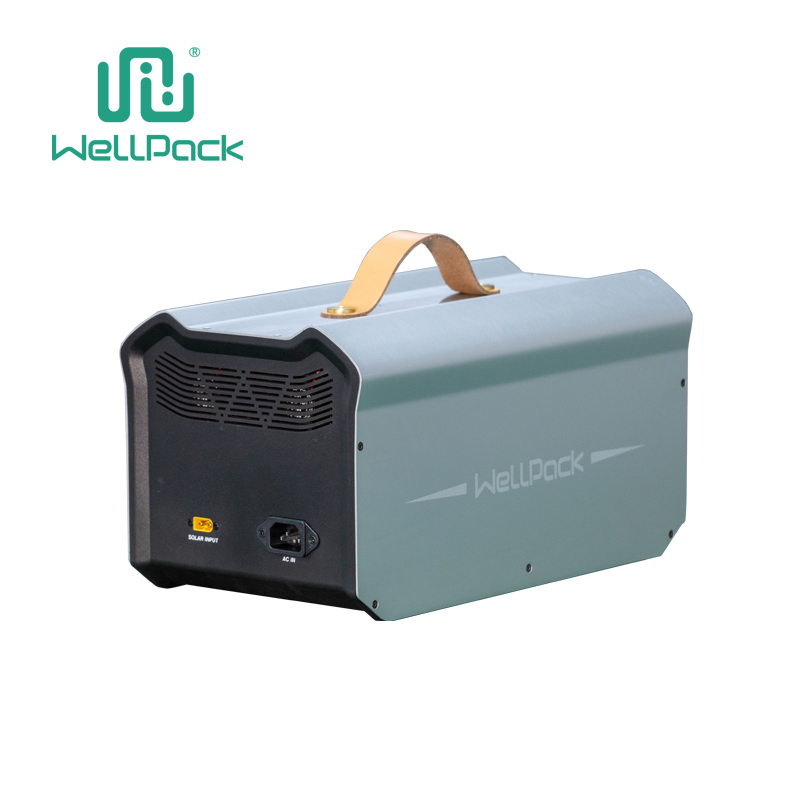

Portable Power Station WPP1200-01
Portable Power Station adopts higher cost of pure sine wave inverter technology, the output waveform is the same as the household city power, with better compatibility, and will not damage the electrical equipment.
- Information
| Type | Item | Specification Parameter |
| Name | Portable Power Station | |
| Model | WPP1200-01 | |
| Shell Material | Aluminium alloy + plastic | |
| AC Input | AC input | Three-pin socket 220V, 600W |
| AC Output 220V | AC Output Voltage | 1x AC socket AC220V±5% |
| AC Output Power | 1200W | |
| AC Output Waveform | Pure sine wave | |
| AC Output Peak | 2400W Peak Hold Time＜0.2S | |
| Frequency | 50Hz /60Hz | |
| USD output port | USB1 output | 5V3A/9V2A/12V1.5A QC3.0 18W |
| USB2 output | ||
| TYPE-C output | PD100W 5V3A/9V3A/12V3A/15V3A/20V5A | |
| Battery pack | Battery Type | LiFePO4 battery |
| Voltage and capacity | 25.6V 30Ah | |
| Energy | 768WH | |
| Cycle life | More than 4000 times | |
| MPPT parameters | PV charge | Max. Power: 300W,Voltage: 36~60V， Max. current：5A，Port: XT60 |
| Charging time | 1.5h | Charging from 0% to 100% (automatic cut-off) |
| Full charge voltage | 29.2V±0.1V | Voltage at which the battery is charged to automatic cut-off |
| LCD display | Battery level percentage display, input power, output power, etc. | |
| Protective function | Short Circuit, overload, over-temperature, over-voltage, over-current, under-voltage, etc. | |
| Overtemperature protection | Overtemperature protection | ≥60℃ |
| Overtemperature recovery | ≤50℃ | |
| Dimension | mm | 184*335*174 |
| Weight | Kg | 9.4 |
