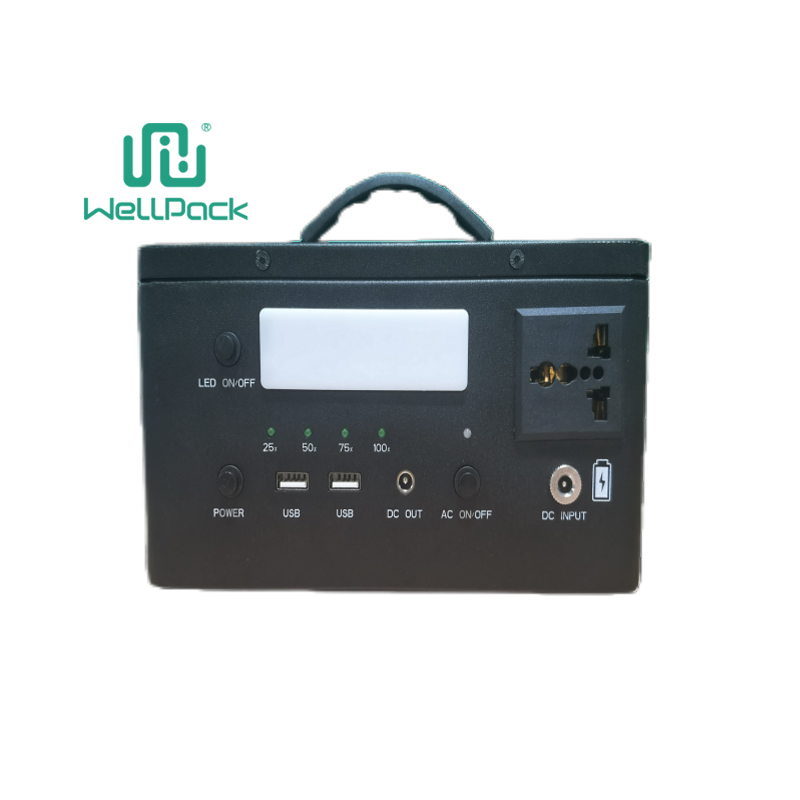

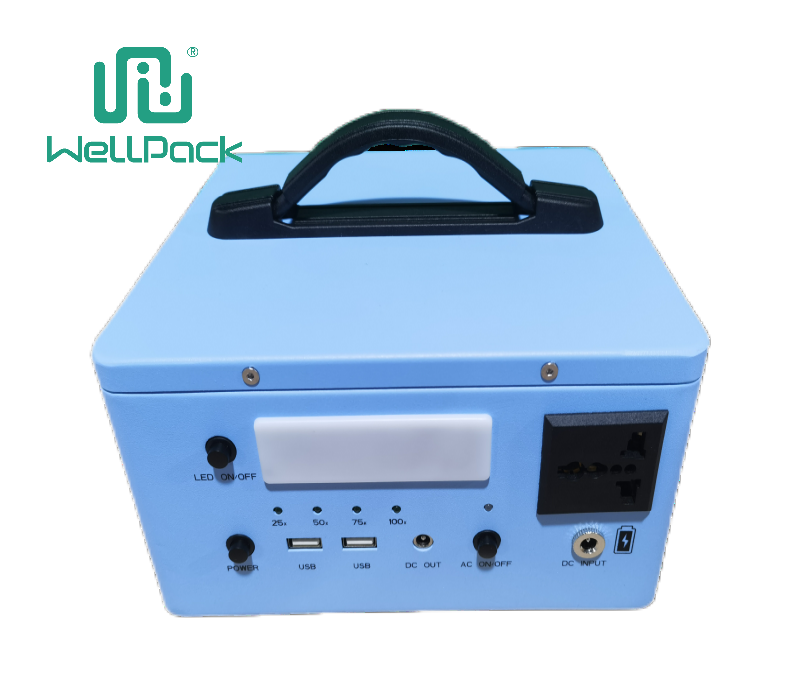

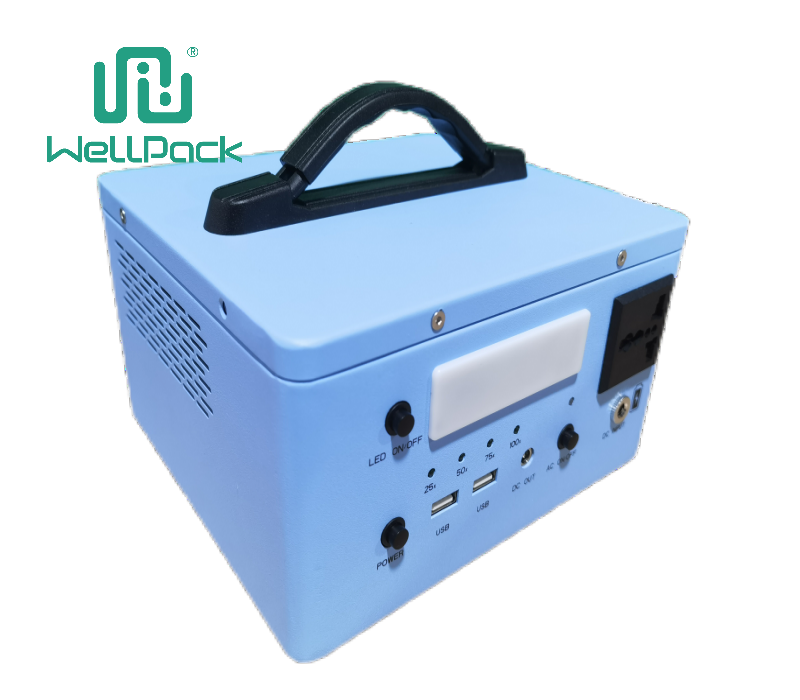

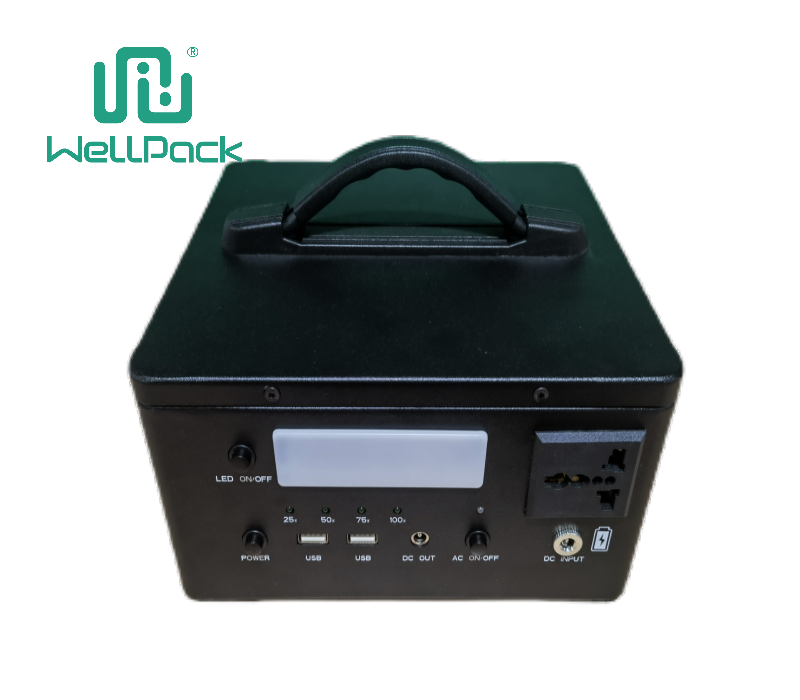

Solar Generator WPP600-03
Solar Generator adopts higher cost of pure sine wave inverter technology, the output waveform is the same as the household city power, with better compatibility, and will not damage the electrical equipment.
- Information
| Type | Item | Specification Parameter |
| Name | Portable Power Station/ Portable Power Generator/ Solar Generator | |
| Model | WPP600-03 | |
| Shell Material | Aluminium alloy | |
| AC Input | AC input | Three-pin socket, 220V 600W |
| AC Output 220V | AC output voltage | 2x AC socket , AC220V±5% |
| AC output power | 600W | |
| AC output protection power | About 680W | |
| AC output waveform | Pure sine wave | |
| AC output peak power | 1200W, Peak Hold Time＜3S | |
| Frequency | 50Hz /60Hz | |
| USD output port | USB1 output | 5V/3A，9V/2A, 12V/1.5A, support FCP, QC2.0/3.0, BC1.2 |
| USB2 output | ||
| TYPE-C 65W output | Support PD2.0, PD3.0, BC1.2 DCP, QC2.0/ QC3.0/ QC4.0/ QC4.0+, iPhone 2.4A, SCP, FCP, Supper Charging-V | |
| DC12V output | DC1 DC2 output | 12V/5A Max. |
| TYPE-C output | TYPE-C2 100W output | Support PD2.0, PD3.0, BC1.2 DCP, QC2.0/ QC3.0/ QC4.0/ QC4.0+, iPhone 2.4A, SCP, FCP, Supper Charging-V |
| Battery pack | Battery Type | LiFePO4 battery |
| Voltage and capacity | 25.6V 18Ah | |
| Energy | 460.8WH | |
| Cycle life | More than 4000 times, @25℃, 80% DOD | |
| MPPT parameters | Maximum power: 200W, Voltage range: 11~55VDC, Maximum current: 12A | |
| Charging time | 1~1.5H | Charging from 0% to 100% (automatic cut-off) |
| Full charge voltage | 29.2V±0.1V | Voltage at which the battery is charged to automatic cut-off |
| LCD display | Displays battery level, charging | Remaining power percentage display |
| DC, AC, Inverter Status | Displayed by the display screen | |
| Protective function | Short Circuit, overload, over-temperature, over-voltage, over-current, under-voltage, etc. | |
| Overtemperature protection | Overtemperature protection | ≥60℃ |
| Overtemperature recovery | ≤50℃ | |
| Dimension | mm | 290*200*165 |
| Weight | Kg | 7.9 |
