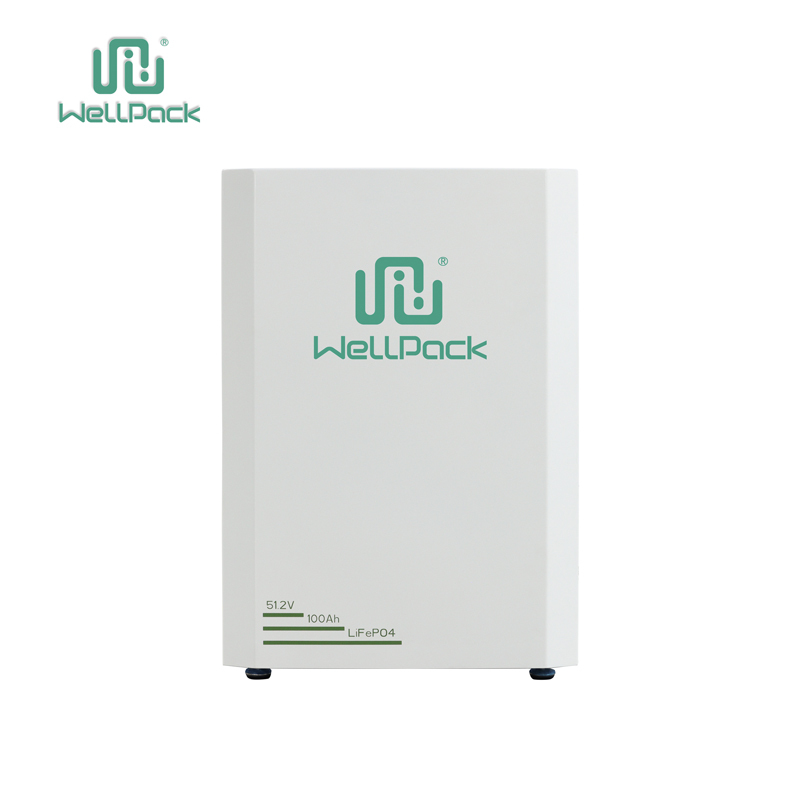

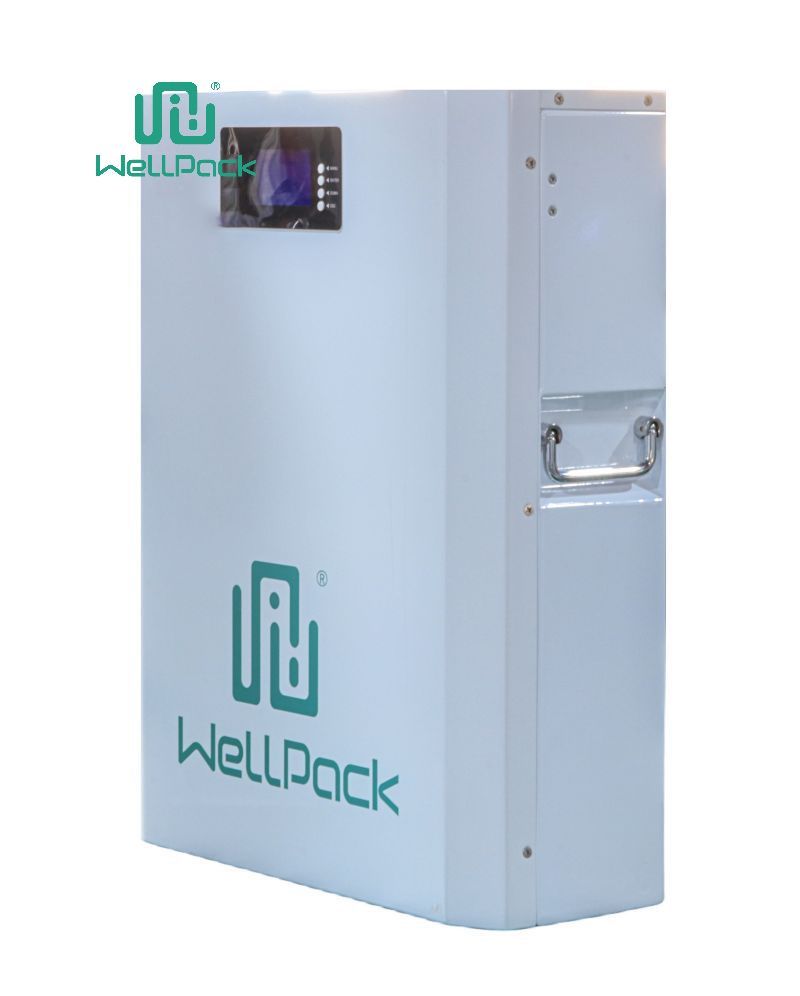

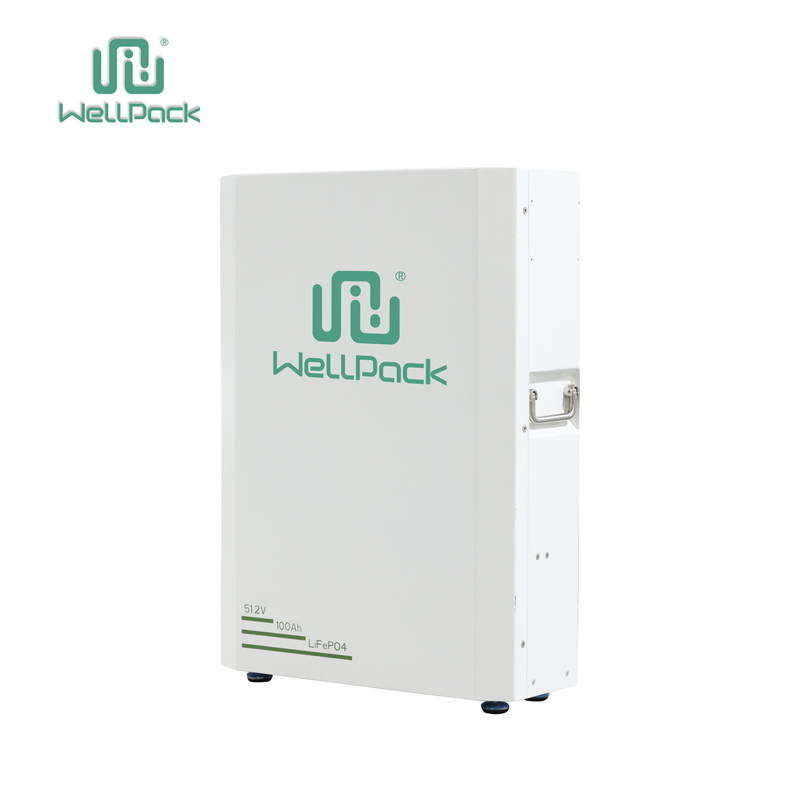

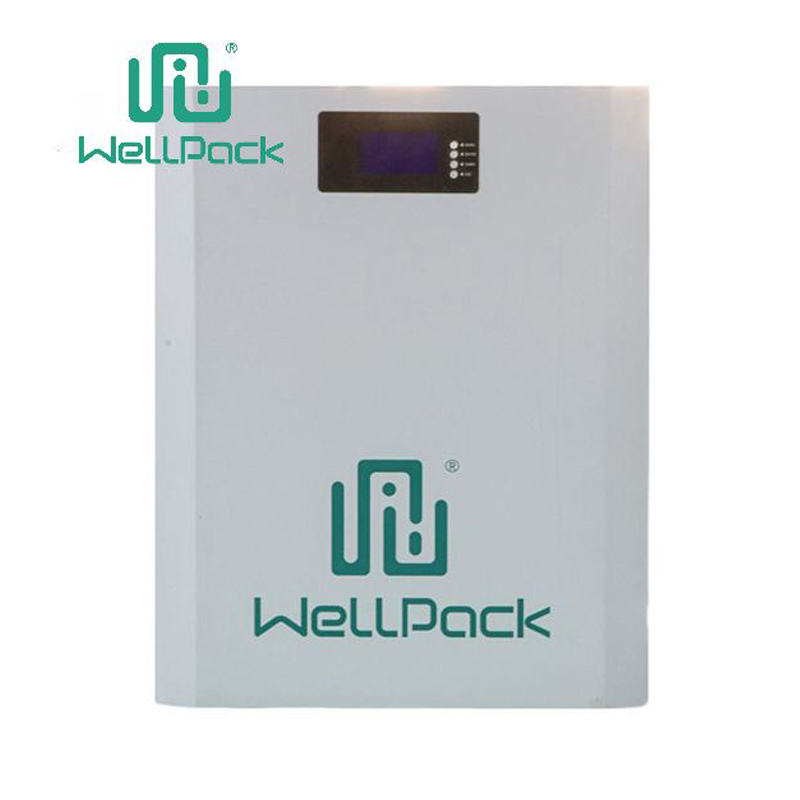

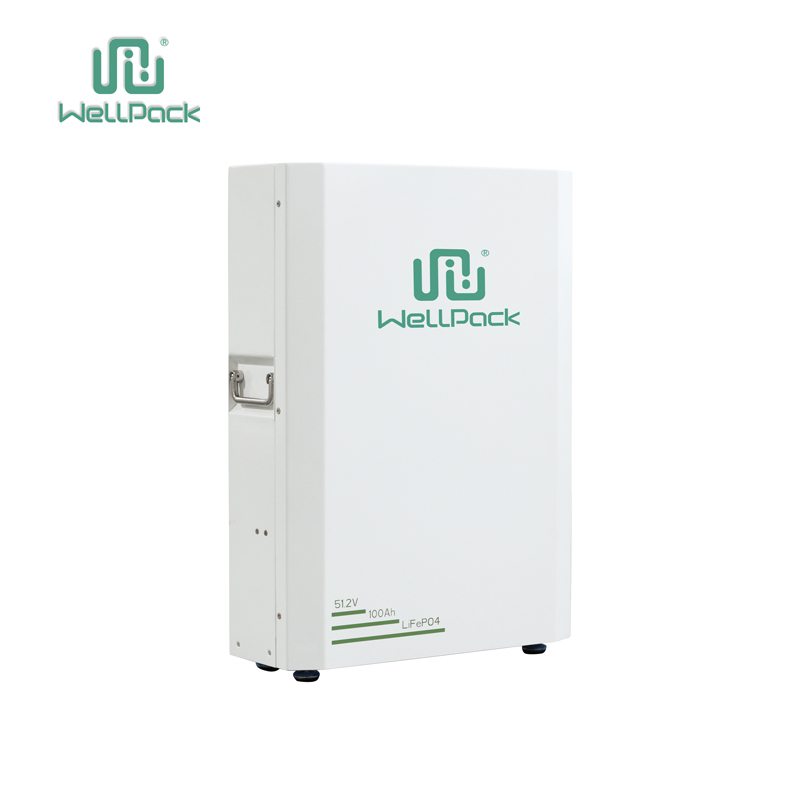

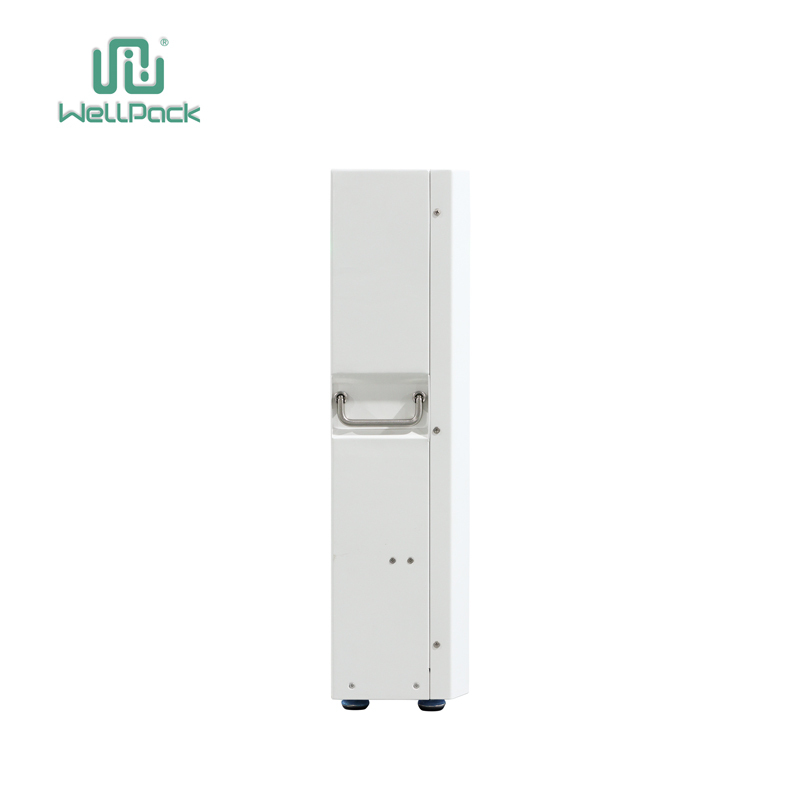

Home wall mounted energy storage system
Home wall mounted energy storage system is an intelligent energy storage power product that supports the parallel use of multiple battery modules. It is widely used for energy storage and backup power in home energy storage systems, communication base stations, small business districts, and office lights.
- LiFePO4 battery (LFP battery)
- 100A
- 580*440*180mm
- 100Ah
- Information
| Item | Technical Parameter | Note |
| Battery Type | Li-ion battery | |
| Cell Material | LiFePO4 | |
| Nominal Voltage | 51.2V | 16S1P |
| Voltage Range | 48~57.6V | operating voltage range |
| Charge Limit Voltage | 57.6V | |
| Battery Energy | 100Ah/ 51.2V (5.12KWh) | At 25℃,0.2C Discharging |
| Internal Resistance | ≤80mΩ | at 20±5°C ambient temperature, use an AC internal resistance tester with frequency of 1kHz for measuring after being fully charged. |
| Charging Voltage | 57.6V±0.5V | |
| Charge Current Limit | 20A | |
| Maximum Charging Current | 100A | Allows charging with maximum charging current |
| Equalization Current | 60mA | |
| Optimum Range of Charging Temperature | 0℃~45℃ | |
| Overcharge Protection Voltage | 58.4V±0.5V | |
| Discharge Termination Protection Voltage | 43.2V±0.5V | Load voltage when the battery pack stops discharging (voltage value at which discharging reaches discharge cut-off voltage) |
| Maximum Discharge Current | 100A | Allows charge with maximum discharge current |
| Battery Packs In Series and Parallel | Supports in parallel, not in series | Up to 16 batteries can be connected in parallel |
| Charge and Discharge Interface | Same Interface | |
| Product Dimension | 580*440*180mm | |
| Product Weight | 50Kg | |
| Shell | Sheet Metal | |
| Storage Condition | 0~25℃ |
