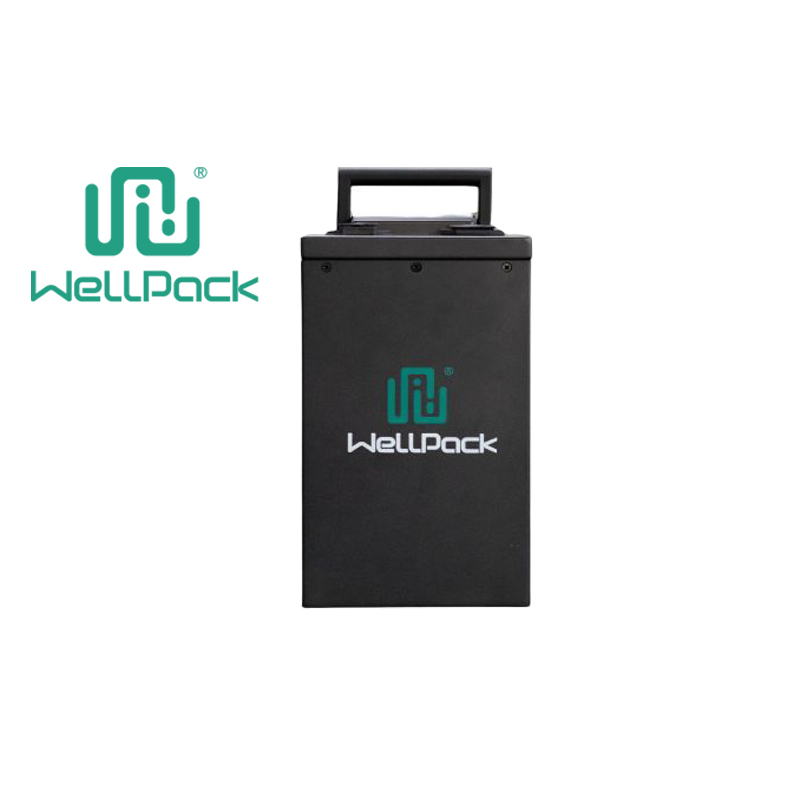

Electric Motorcycle Lithium Battery-7230
Battery container cover is made of reinforced ABS material and sealed with modified epoxy resin sealant which can effectively prevent acid from leaking
- LiFePO4 battery
- 30A
- 215*170*341mm
- 30Ah
- Information
| Item | Technical Parameters | Note |
| Name | Electric Motorcycle Lithium Battery | |
| Battery type | LiFePO4 battery | |
| Nominal capacity | 30Ah | |
| Minimum capacity | 29.8Ah | |
| Battery grouping | 24S2P | |
| Nominal voltage | 76.8V | Nominal voltage of battery cell: 3.2V |
| Operating voltage range | 60V~87.6 (@≥0℃) | Cell voltage range: 2.5V～3.65V (@≥0℃) |
| SOC operating range | 0%～100% | |
| Maximum discharge sustainable current | 30A | BOL@25℃ |
| Short-term peak discharge current | 60A | 2S @25℃, 50% SOC |
| Maximum continuous charging current | 30A | BOL@25℃, 0%～60% SOC |
| Maximum charge limit voltage | 87.6V | |
| PACK design cycle life | 2000 cycles@70% SOH | at 23℃, 0.2C/0.5C, charge/ discharge interval 0.5H~1H, warranty life is subject to warranty agreement. |
| SOC of battery delivery | 50%±5% | |
| Thermal management mode | Natural cooling | |
| IP protection level | Battery box IP65 | |
| Weight | 17KG | |
| Dimension | 215*170*341mm | |
| Shell material | Stainless Steel, Baked Enamel Black Sandpaper | |
| Storage ambient temperature | -20℃~+65℃ | Optimum temperature 25±2°C |
| Working environment temperature | System: -20℃~+65℃, Battery charging: 0℃ ~+65℃, Battery Discharge: -20℃~+65℃ | Charging: 0℃~+55℃ |
| Relative humidity of working environment | ≤95% | The best use of relative humidity: ≤ 75% |
