Battery Screen Printing Machine

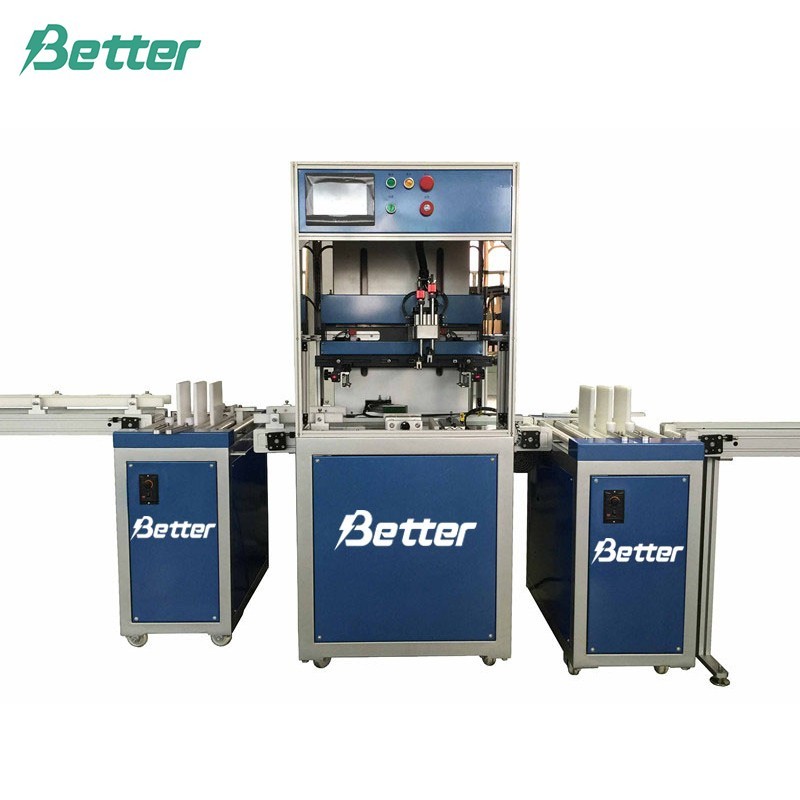

Screen Printing Machine applies to print the words or pictures on the battery.
- BETTER
- CHINA
- Information
Automatic Screen Printing Machine
The screen printing machine adopts PLC control and human machine interface digital operation. This machine adopts mechanical transmission, with accurate positioning and fast speed. It provides a variety of function settings, to achieve the operation of data, standardization, and humanization of the perfect requirements. Innovative structure design, with servo motor guide rail guiding system, running fast, stable and smooth, automatic turnover, automatic printing, Led cold light source instant curing, automatic, over-turn 90°. Accurate positioning, energy saving, automatic feeding, labor saving, ensure printing quality.
Main Parameter
NO | Item | Parameter |
1 | Maximum printing area | 160mmx200mm |
2 | Steel plate size | 200mm*250mm |
3 | Printing color | Two colors |
4 | Printing precision | ±0.05mm |
5 | Control system | Panasonic |
6 | HMI | WEINVIEW |
7 | Positioning system | Mechanical positioning |
8 | Conveyor drive | Servo motor + mechanical drive |
9 | Working cycle | About 6S |
10 | Working pressure (Mpa) | 0.4~0.6Mpa |
11 | Machine structure | combination |
12 | Production capacity | About 500pcs/hr |
13 | Power Supply | 220V 50/60Hz |
14 | Positioning induction | Optical fiber |
15 | Machine dimension | 3000mm*1750mm*1700mm |
Structure Configuration
Structure | Item | Accessory Name | Configuration Description |
Basic structure | Frame | Q235A+ high quality square tube | Frame and parts |
Sealing plate | high quality cold-rolled sheet | ||
Other parts | cast aluminum and alloy aluminum | ||
Back and forth system | Back and forth drive | Rodless cylinder | SMC |
Guiding | Guide rail | HIWIN | |
Drive system | Drive | Servo motor | Panasonic |
Guiding | Mechanical drive | combination | |
Control system | Control circuit | PLC+HMI | Panasonic |
Pneumatic control | solenoid valve | SMC |
