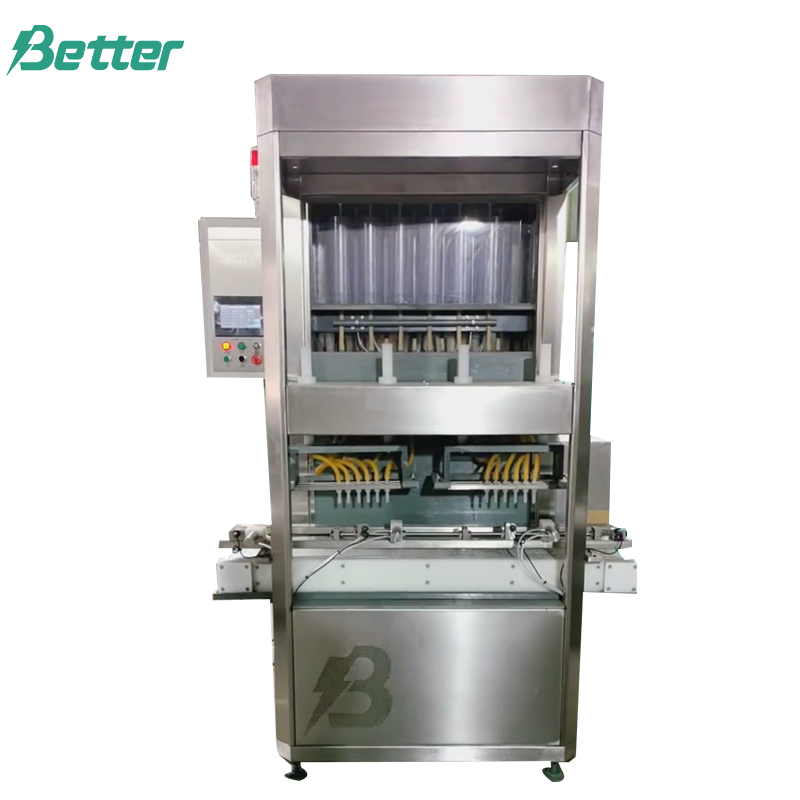

Automatic Numerical Control Volume Quantitative

battery Acid Filling Machine

(12 nozzles)

Application: For acid filling car batteries before and after battery formation.

Operation: Set the acid filling volume by the touch screen. The battery will be automatically positioned by the photoelectric sensor. The machine will automatically do the acid filling, and the finished battery will be delivered to the next working process.

Feature: There are two acid filling stations of the machine. The equipment adopts the quantitative numerical control, and the quantitative cylinder is automatically adjusted by the rotary encoder.

Main configuration316L stainless steel machine frame, PP conveyor, Koyo Rotary EncoderMITSUBISHI PLC/HMI, AIRTAC pneumatic components, Schneider low voltage electrical,

Production Capacity: 2~3pcs batteries /min

Acid filling volume: 200-2000ml/nozzle.

Acid filling speed: 1000ml/min/nozzle

Electric Power: AC380V, 60Hz, 9KW

Compressed Air Installed: 0.1m3/min,0.6Mpa

Dimension (L*W*H): 1500*1100*2200mm

Weight: 1200kg


acid filling machine
